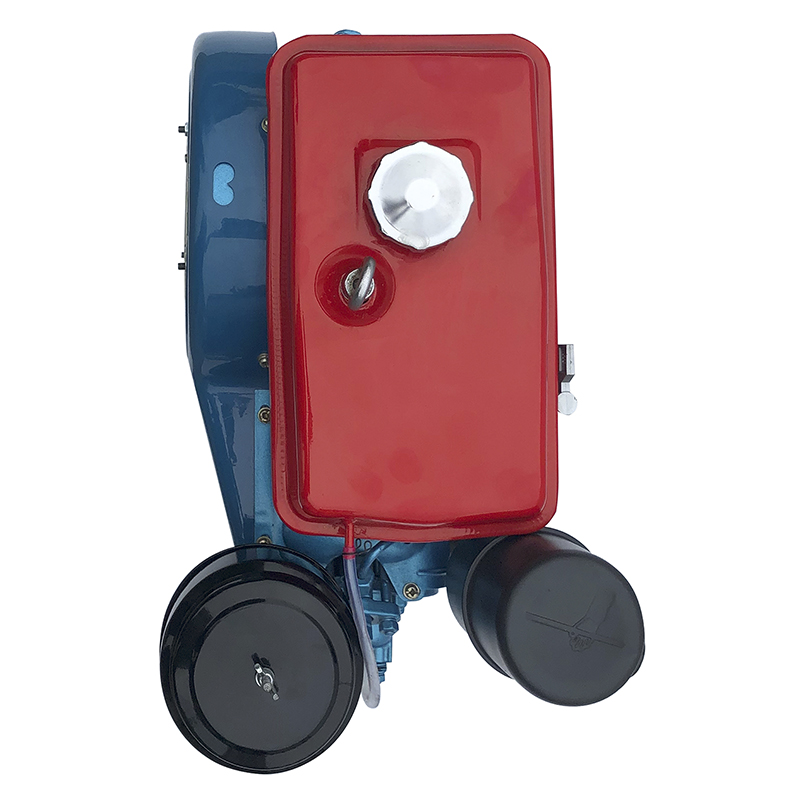

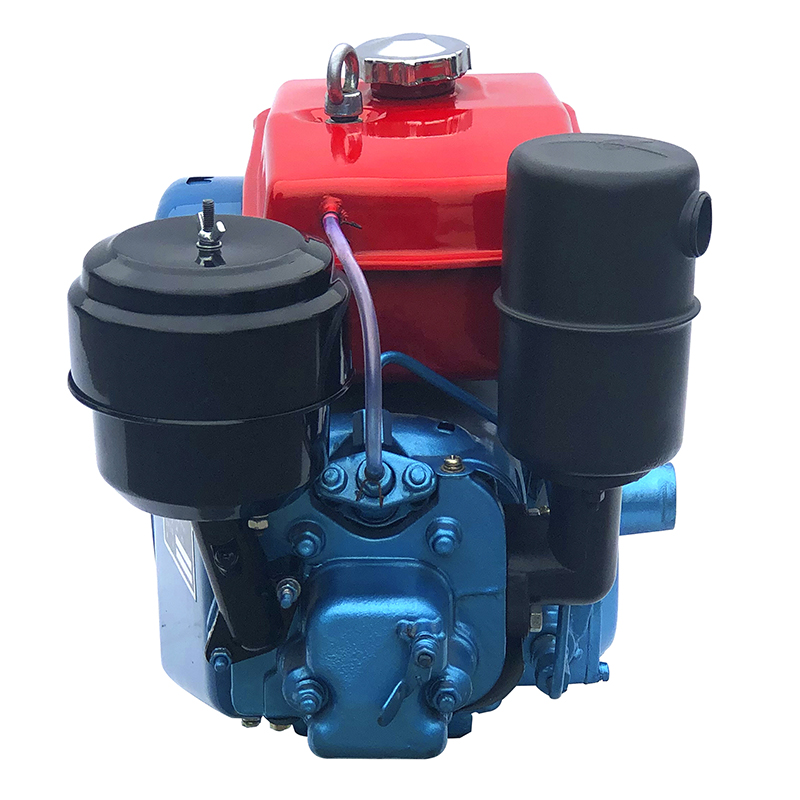

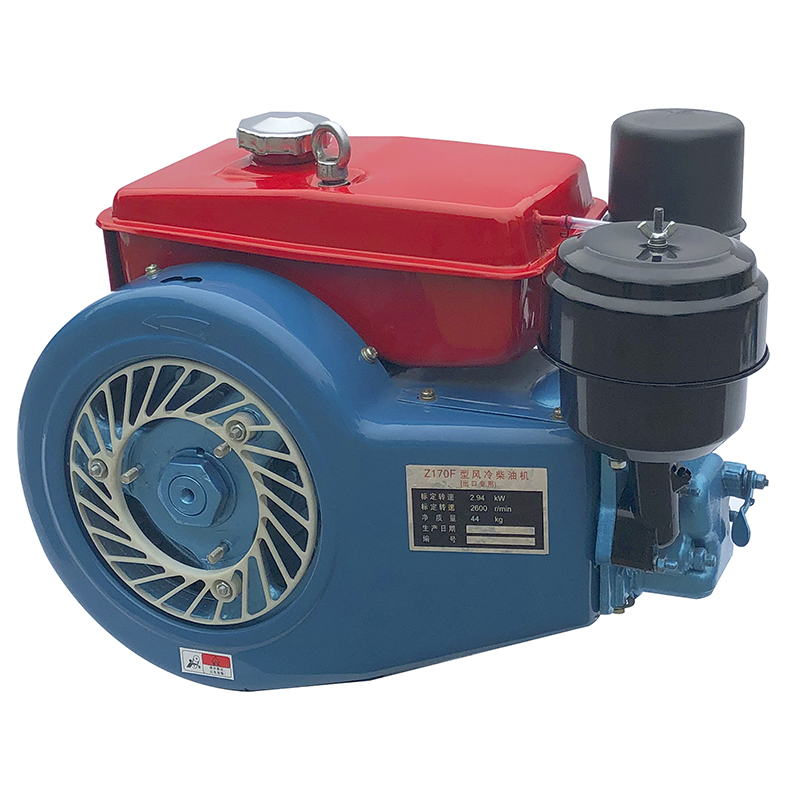

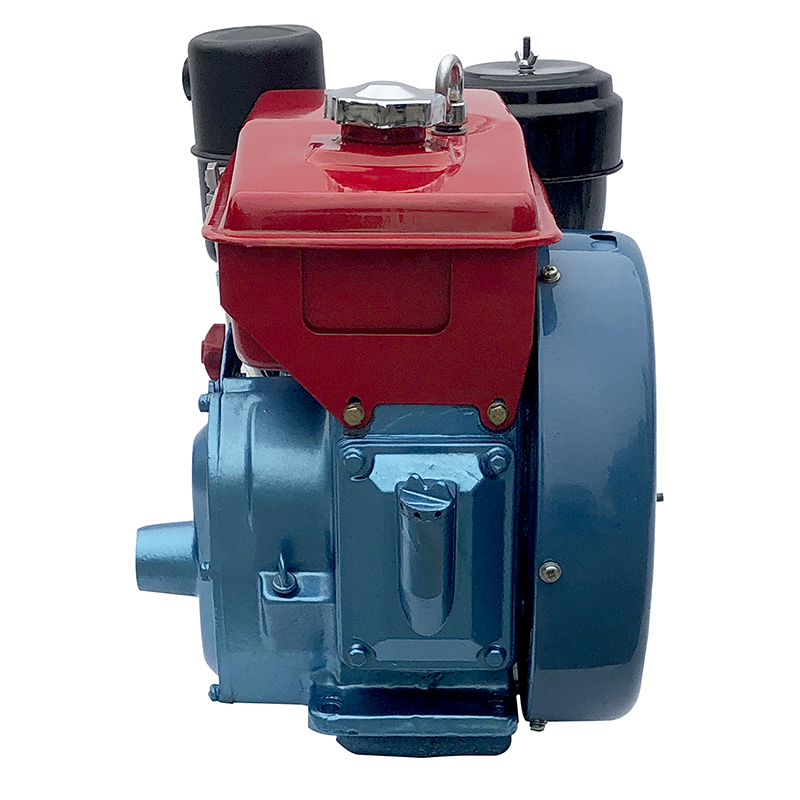

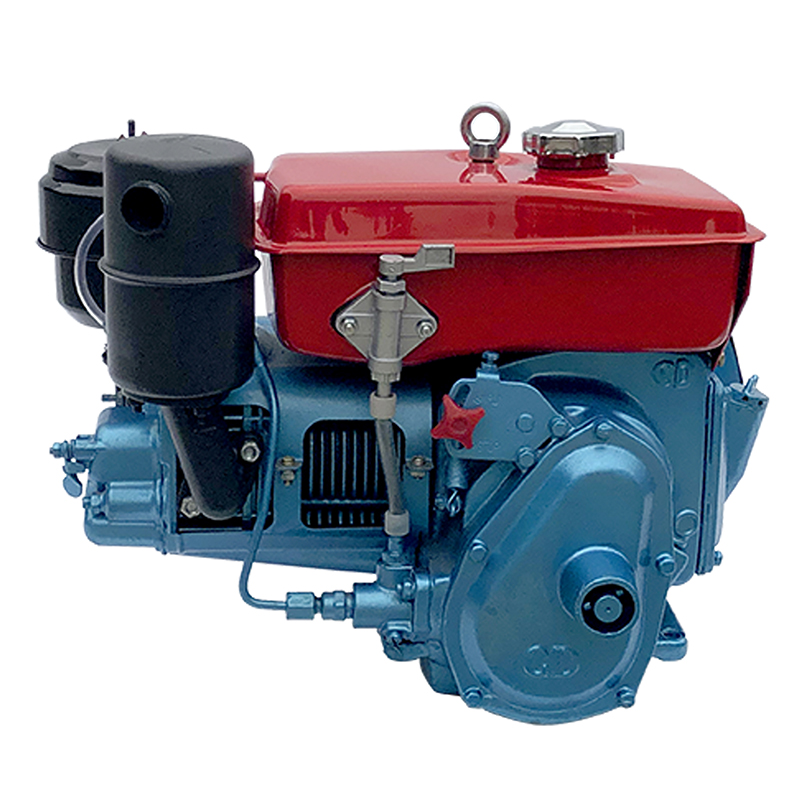

4HP Hand-Start Z170F Single Cylinder Diesel Engine with Cast Iron Block
This horizontal 4-stroke diesel engine Z170F is designed for reliable power in agricultural equipment, generation sets, and small engineering machinery. With 4 HP rated power and hand-start convenience, this single cylinder diesel engine fits a wide range of B2B applications, supported by a durable cast iron cylinder block and forged steel crankshaft.
Key Selling Points
Rated Power 4 HP (2.98 kW) - Delivers efficient performance for powering tractors, water pumps, and generators, reducing the need for larger engines in light-duty tasks.
Hand-Start System - Simple pull-start operation ensures quick starts in remote or field conditions where electric start may not be available.
Heavy-Duty Cast Iron Cylinder Block - Provides the structural strength to withstand continuous operation, extending the engine's service life in demanding environments.
Forged Steel Crankshaft - Offers proven durability and reliability, reducing maintenance frequency for long-term investments.
Technical Specifications
Specification
Detail
Type
Horizontal 4-stroke diesel engine
Starting System
Hand-start
Rated Power
4 HP
Rated Speed
2600 rpm
Bore x Stroke
70 x 70 mm
Displacement
0.269 L
Fuel Consumption
304.2 g/kW-h
Oil Consumption
4.31 g/kW-h
Fuel Tank Capacity
6 L
Models and Options
Model Z170F is the baseline configuration with hand-start. For other power requirements, our range includes 3-45 HP single-cylinder diesel engines, available in air-cooled and water-cooled versions. Contact our sales team for customization options tailored to your application.
Materials and Structure
The engine features a heavy-duty cast iron cylinder block, forged steel crankshaft, alloy aluminum piston, and wear-resistant cylinder liner, ensuring robust construction for continuous duty.
Applications
Agricultural equipment: small tractors, tillers, harvesters
Engineering equipment: small construction machinery like concrete mixers
Power generation equipment: generator sets and water pumps
Air compressors and agricultural processing machinery
Customization
We offer OEM/ODM services to adapt the engine for specific applications, including shaft configurations, mounting options, and branding.
FAQ
What is the fuel consumption of this Z170F engine?
The fuel consumption is 304.2 g/kW-h under standard conditions, offering cost efficiency for continuous operation.
Can I use this engine for a water pump?
Yes, the Z170F is suitable for driving water pumps, as it fits within our range of engines designed for such applications.
How long is the warranty?
Warranty details are provided upon inquiry. Our factory adheres to strict quality management processes, including ISO9001 and ISO14000 certification.
What is the minimum order quantity?
The MOQ is one 20 ft container. We welcome both small and large orders.
What are the payment terms?
Standard terms are 30% deposit and 70% before shipment (30/70). We also accept FOB or EXW delivery methods.
How do I get technical support?
Our engineering team provides support via email or video conference. Contact person: Khang at khang@enginezoom.com.
Can the engine be painted with my brand colors?
Yes, we offer customization including paint color and decals for your brand.
What is the delivery time for a container order?
Delivery time is confirmed after order, typically within 30 days. Please contact us for current schedules.
